Automatic Vertical L Bar Sealer Thermal Shrink Packing Machine

Basic Information

Product Features

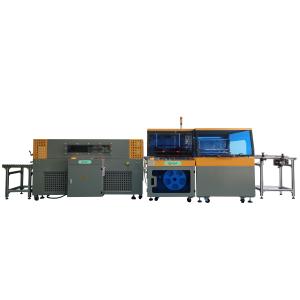

ZSL-5565CL is a fully automatic unmanned operation "L" type sealing machine which is widely used in mass production packaging line with high efficiency. Automatic film feeding punching device, manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items.

Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution;

Equipped with imported photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;

Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the waste film automatically rolling;

When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers; Different size products can also be packaged combinations to achieve the promotional effect;

Using original Autonics digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature. The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting;

The machine is equipped with organic glass shield with automatic alarm function which greatly improves safety;

The entire machine realizes unmanned operation with the production line connecting;

Film up-down synchronization mechanism specially designed to correct the deviation film;

I can be added easily tear functions according to customer requirements;

Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries' large quantities of shrink wrap.

Product Description

Product Display

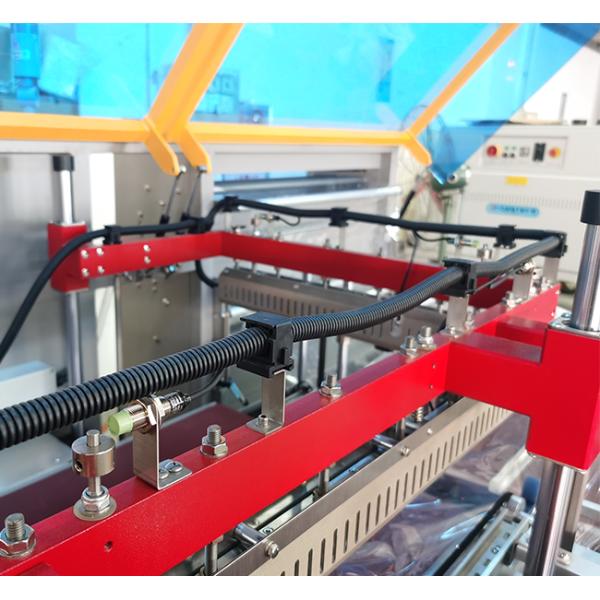

Vertical sealing tool holder: Safety protection and alarm attached.

Electric Cabinet: Using Mitsubishi PLC and other famous brand electrical appliances, the machine runs smoothly and stably, the program after 16 years of continuous accumulation and update, has been nearly perfect, to ensure packaging speed and effect.

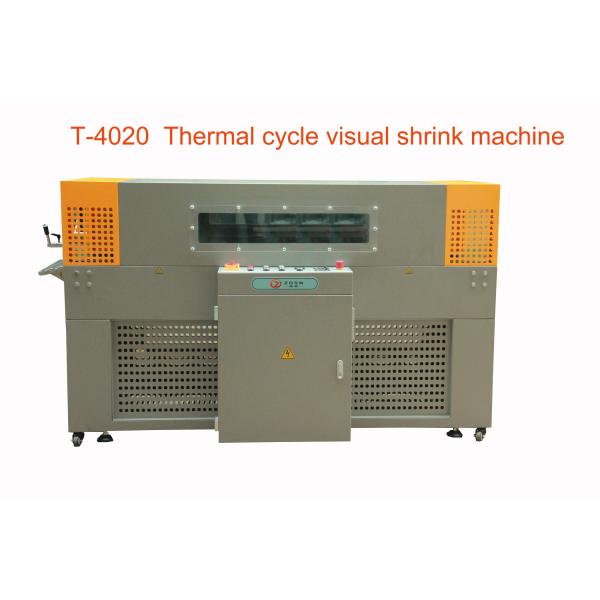

Thermal cycle visual shrink packaging tunnel keeping constant temperature. Can be set different temperature to suit for different film, wind direction and speed also can be adjusted to

Packaging And Delivery

1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.

5. Port Guangzhou or Shenzhen

  Guangzhou ZOSN Electric Automation Co., Ltd. was founded in 2006, located in Panyu District, Guangzhou, China. We are high-tech firm specializing in the automatic packaging equipment development and manufacture over 16 years, and are prepared to accept customer′s specific requirements, In order to help customers to improve efficiency, save resources and reduce production costs. We are also committed to the development and manufacture of packaging machinery. Our main products include: Sealing and shrink wrapping machine, case erectors, case sealers, tray erector, automatic integration of unmanned systems equipment, conveyors and other standard and non-standard machinery.

  We have accumulated rich experience of mechanical design, automatic controller. Technology, stable and completed program, advanced circuit devices, spare parts are all comes from years of accumulation. The advantage of our Packaging Machines is high quality, stable, efficiency, energy-saving, environmental protection, durable, beautiful etc. Your packaging expert, we “excellence” made.

  ZOSN company aims at satisfying every demand of the customers. All the designs of the machine are centered around the consideration of customers′ position. We regularly discuss customer feedback and seek solutions. If your esteemed company has special requirements, we are willing to customize for you. Our company will provide one year warranty and lifetime maintenance services.
