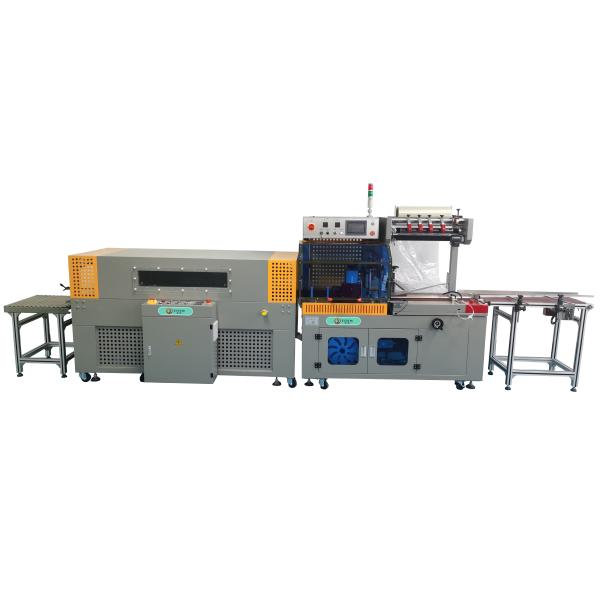

    AC 380V 3.2KW Commercial Shrink Wrap Machine Magazine Sealing


    Magazine Side Thermal Sealing and Shrink Wrapping Machine


    Product Feature


    The ZS-450T-CF + ZS-4530T automatic side sealer is a highly efficient all-electric side sealer that combines a hot knife end seal with an adjustable seal and trims knife. The trim knife is actuated when the product moves past the cross seal. Compared to conventional automatic L-bar sealers, the machine can pack products of any length at high speed.

    1. Side blade sealing continuously makes the unlimited length of the product.

    2. Side sealing lines can be adjusted to the desired position which based on the product's height in order to achieve excellent sealing results.

    3. It adopts the most advanced Mitsubishi PLC controller and touch operator interface. Touch operator interface accomplish all working date easily.

    4. Sealing knife uses the aluminum knife with DuPont Teflon with anti-stick coating & anti-high temperature to avoid cracking, coking and smoking with zero pollution.The sealing balance itself is also equipped with automatic protection function which effectively prevent from accidental cutting.

    5. Automatic film feeding punching device is to drill away the air and make sure the packing result is good.

    6. Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items.

    7. ZS-4530T adopts advance circulation blowing from the bottom of the tunnel, equipped double frequency inverter controls blowing, adjustable blowing direction and volume form bottom.



    Product Description

    ModelZS-450T-CFZS-4530T
    Power3.2kw16kw
    Power SupplyAC 380/220V 3PH 50/60HzAC 380V 3PH 50/60Hz
    Max Packing Sizes L×W×HL(unlimited) / W+ H ≤ 400mm1200×350×200mm
    Tunnel Size L×W×H/1800×450×300mm
    Sealing Blade LengthL450mm / H150mm/
    Packing Speed20-50 Pcs / min.0-30m / min
    External Air Source6-8kg / cm2
    Shrink FilmPOFPOF
    Machine Size L×W×H1920×1560×1390mm2300×650×1560mm
    Packaging Size L×W×H1970×1610×1520mm2360×700×1680mm
    G./N. Weight700/650kgs320/260kgs



    Product Display





















    Standard Safety Performance

    1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.
    2. There are protective devices or warning signs at unsafe locations of the machine.
    3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.


    Packaging Details

    1. Spray anti-rust oil
    2. Fix the machine on the pallet
    3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
    4. Covered with sea export plywood case.

    5. Loading Port: Guangzhou or Shenzhen
