AC380V 2.2KW Automatic Sleeve Wrapping Machine Bottle Heat Shrink Tunnel

    Buy cheap AC380V 2.2KW Automatic Sleeve Wrapping Machine Bottle Heat Shrink Tunnel from wholesalers

    Buy cheap AC380V 2.2KW Automatic Sleeve Wrapping Machine Bottle Heat Shrink Tunnel from wholesalers
    • Buy cheap AC380V 2.2KW Automatic Sleeve Wrapping Machine Bottle Heat Shrink Tunnel from wholesalers

    AC380V 2.2KW Automatic Sleeve Wrapping Machine Bottle Heat Shrink Tunnel

    Ask Lasest Price
    Brand Name : ZSON
    Model Number : ZS-8040X + ZS-8040PE
    Certification : CE
    Price : Negotiated
    Supply Ability : 1 Set: 10 Days / 2-5 Set: 15 Days / 6-10 Set: 25 Days / >10 Set: Negotiated
    Delivery Time : 15Days
    • Product Details
    • Company Profile

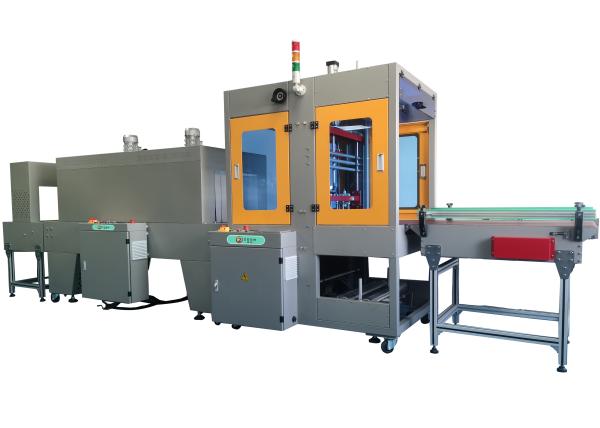

    AC380V 2.2KW Automatic Sleeve Wrapping Machine Bottle Heat Shrink Tunnel

    Automatic Sleeve Shrink Machine PE Film Shrink Packing Machine


    Technical Specification


    Model

    Name

    ZS-6040X

    Automatic Sleeve Shrink Machine PE Film Shrink Packing Machine

    TS-6040PE

    Thermal Cycle Shrink Machine

    Power Source3P AC380V 2.2KW3P AC380V 26KW
    External DimensionL2860 * W1180 * H1780MML3000 * W1120 * H1580MM
    Cutter size / Tunnel size620MML1800 * W600 * H400MM
    Temperature0-220°C Adjustable

    0-220°C

    Adjustable Wind Direction And Speed

    FilmPE, PVCPOF, PE, PVC
    Packing SizeL + H ≤ 600 * 350mm, W + H ≤ 400 * 350mmL1500 * W400 * H300MM
    Packing Speed6 - 20 Pcs / Minute0 - 30 Meters / Minute

    Technical feature

    1. Frequancy control,Secondary bottle transport device.
    2. The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
    3. Inductive switch control film length.
    4. Touch screen,PLC control system advanced reliability of the equipemtn function.
    5. Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
    6. Strong cooling system can reassure finalize the design quickly.
    7. Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
    8. Frequancy conversion timing net transportation structure.
    9. The height of the conveyer belt can be made according to the user,adustable range±50mm

    10. Bottole transport machine can satisfy the direction of the user,it can prolong and shorten
    11. Pterygoid stainless iron heating system,durability.
    12. Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.


    Products Details


    Products NameAutomatic Sleeve Shrink Machine PE Film Shrink Packing MachineModel Number

    ZS-12060X + ZS-10060PE


    Applicable Industries

    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company


    UsageCommodity, Machinery Hardware, APPAREL, Textiles, Box, Book, Food, Cosmetics, Electronic Product, Etc.
    Driven TypeElectricMaterialCarbon Steel + Powder Painting
    Core ComponentsPLC, Motor, Bearing, Frequency ConverterAutomatic GradeAutomatic
    Place of OriginGuangdong, ChinaMachine LangueOptional
    Air Compressing5.5-8.5kg/cm3Warranty1 Year, 1 Year except consuming spare parts
    After-sales Service Provided

    Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service


    After Warranty Service

    Video technical support, No service, Online support, Spare parts, Field maintenance and repair service



    Operator Panel: man-machine interface support a variety of language switch, various parameters can be set and changed through the man-machine interface. Man-machine interface can set password to protect data and avoid misoperation.

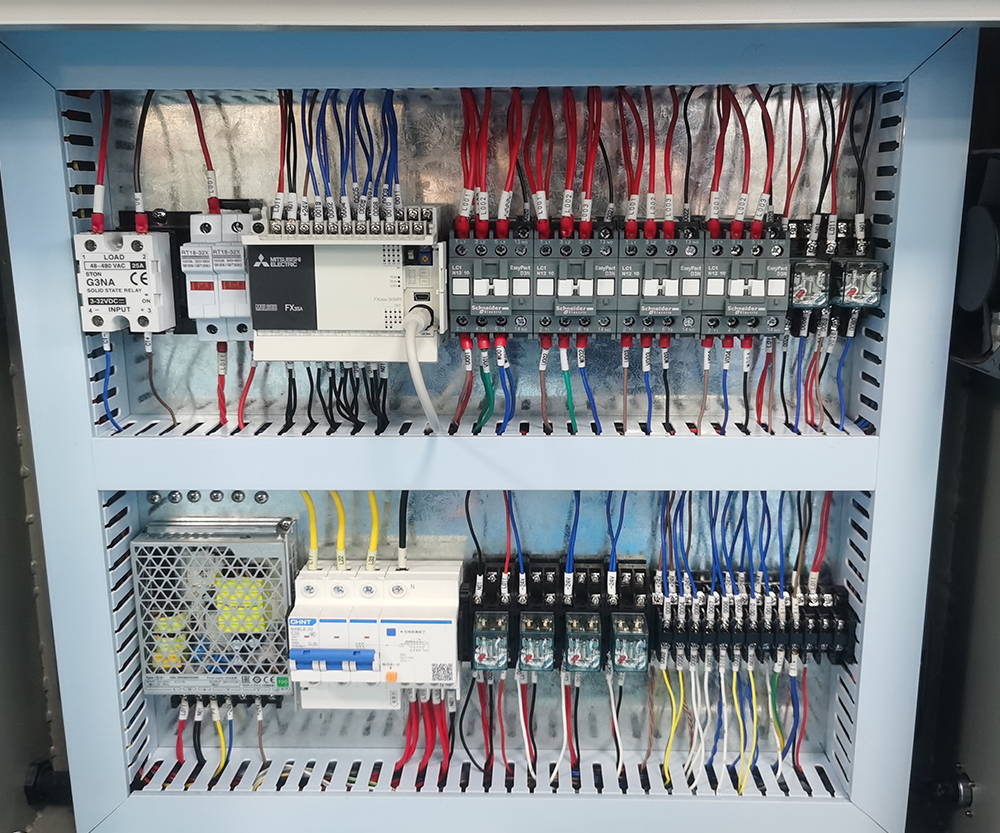

    Electric Cabinet: Adopt international famous accessories, Mitsubishi PLC, Delta inverter, Schneider contactor, etc., to ensure the stable operation of the machine without failure.



    Sample: Sealing firm, beautiful shrinkage, dustproof and waterproof, tightly bound, not out of position, easy to handle.


    Packaging And Delivery


    1. Spray anti-rust oil
    2. Fix the machine on the pallet
    3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
    4. Covered with sea export plywood case.

    5. Port Guangzhou or Shenzhen
