280 Degree Automatic Heat Shrink Wrap Machine 800mm Tunnel

    Buy cheap 280 Degree Automatic Heat Shrink Wrap Machine 800mm Tunnel from wholesalers

    Buy cheap 280 Degree Automatic Heat Shrink Wrap Machine 800mm Tunnel from wholesalers
    • Buy cheap 280 Degree Automatic Heat Shrink Wrap Machine 800mm Tunnel from wholesalers

    280 Degree Automatic Heat Shrink Wrap Machine 800mm Tunnel

    Ask Lasest Price
    Brand Name : ZSON
    Model Number : ZS-800T-CF + ZS-8040T
    Certification : CE
    Price : Negotiated
    Supply Ability : 1 Set: 10 Days / 2-5 Set: 15 Days / 6-10 Set: 25 Days / >10 Set: Negotiated
    Delivery Time : 15 Workin Days
    • Product Details
    • Company Profile

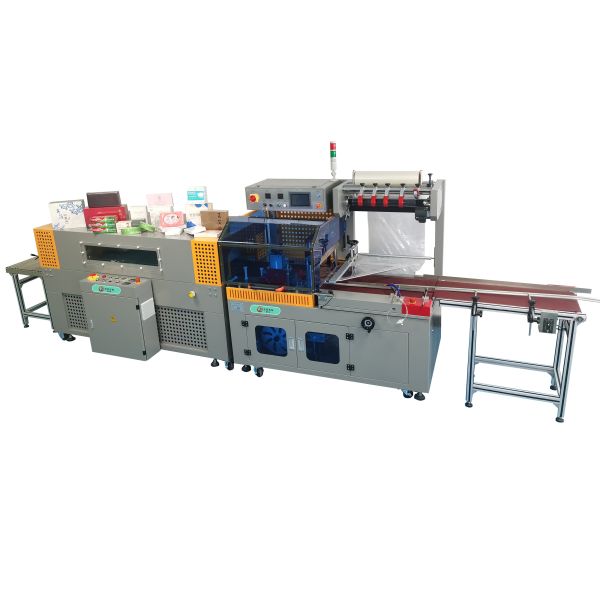

    280 Degree Automatic Heat Shrink Wrap Machine 800mm Tunnel


    Automatic Big Side Sealer Shrink Tunnel Machine


    Product Feature


    ZS-800T-CF fully automatic side sealer is a highly efficient, intermittent motion, automatic side seal shrink wrapper that offers both high speed and exceptional value. This automatic side sealer combines a hot knife end seal with a rotary sealer, eliminating the fixed length side in the front. compared to conventional automatic L-bar sealers, the fully automatic side sealer can pack products of any length and do so at high speed.


    1. ZS-800T-CF is a fully automatic medium speed side sealer machine with the function of automatic film feeding punching, coating, sealing cutting, waste film automatically rolling in one time which is widely used in mass production packaging line.
    2. The sealing part is consist of transverse sealing and side sealing, both can be lifting controlled independently. We can guarantee sealing line in the middle of the product to achieve perfect sealing effect.
    3. The transverse sealing part is controlled by servo motor. Film cutting is uniform strength, sealing stable and fast.
    4. Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
    5. Side sealing part can continuous pull film sealing and cutting and product length is unlimited.
    6. Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect.
    7. Waste film automatically rolling. Using independent motor control, rolling speed uniform and smooth will not too tight or too loose which can avoid break the waste film and the rewinding plate is easy disassembly.
    8. Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily.


    Basic Information


    MODELZS-800T-CFZS-8040T
    FilmPOF/PEPOF
    Packing Speed20-50 pcs / min30m / min
    Packing SizeW+H≤750mm, H≤200mm, L≥100mmW≤450×H≤200mm, W+H≤480mm
    Cutter size / Tunnel size800mmL2000 × W800 × H400mm
    Max Temperature280ºC200°C
    Electrical220V/380V 50/60HZ220V/380V 50-60Hz 3 Phase
    Power3.5KW22KW
    Max Current4A25A
    Air Compressing0.6--0.85MPa/
    Table Height850+30mm850+30mm
    Machine dimensionL1920 x W1910 x H1420mmL2500 × W1000 × H1660mm
    Machine Weight870 kg390 kg

    Product Display





















    Standard Safety Performance

    1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.
    2. There are protective devices or warning signs at unsafe locations of the machine.
    3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.


    Packaging Details

    1. Spray anti-rust oil
    2. Fix the machine on the pallet
    3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
    4. Covered with sea export plywood case.

    5. Loading Port: Guangzhou or Shenzhen
