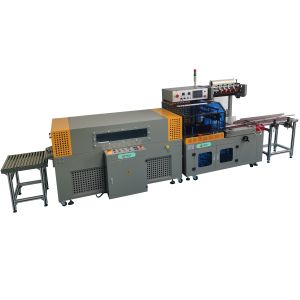

    High Speed Homothermal Book Shrink Wrap Machine Thermal OEM Service


    Automatic Side Sealer Machinery for Bottles


    Product Feature

    ZS-450T-CF is an economical fully-auto unmanned operation side sealer by our company's independent research and development, which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width.

    Cross sealing bar with PTFE-coated sealing blade adopts vertical driving; Side sealing system by friction with hot blade. The sealing line is straight and strong and we can guarantee seal line in the middle of the product to achieve perfect sealing effect.

    When it packs different sizes, the adjustment is very simple by rotating the hand wheel to increase the reliability.

    ZS-4530T adopts advance blowing from the bottom of the chamber, fully use of heat to arise energy efficiency. Frequency inverters control blowing and conveyor speed separately. The blowing direction is adjustable.


    Product Description


    ModelZS-450T-CFZS-4530T
    Power3.2kw16kw
    Power SupplyAC 380/220V 3PH 50/60HzAC 380V 3PH 50/60Hz
    Max Packing Sizes L×W×HL(unlimited) / W+ H ≤ 400mm1200×350×200mm
    Tunnel Size L×W×H/1800×450×300mm
    Sealing Blade LengthL450mm / H150mm/
    Packing Speed20-50 Pcs / min.0-30m / min
    External Air Source6-8kg / cm2
    Shrink FilmPOFPOF
    Machine Size L×W×H1920×1560×1390mm2300×650×1560mm
    Packaging Size L×W×H1970×1610×1520mm2360×700×1680mm
    G./N. Weight700/650kgs320/260kgs



    Product Display





















    Standard Safety Performance

    1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.
    2. There are protective devices or warning signs at unsafe locations of the machine.
    3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.


    Packaging Details

    1. Spray anti-rust oil
    2. Fix the machine on the pallet
    3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
    4. Covered with sea export plywood case.

    5. Loading Port: Guangzhou or Shenzhen
