Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine

    Buy cheap Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine from wholesalers

    Buy cheap Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine from wholesalers
    • Buy cheap Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine from wholesalers

    Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine

    Ask Lasest Price
    Brand Name : ZSON
    Model Number : ZSL-6575CL + T-5025
    Certification : CE
    Price : Negotiated
    Supply Ability : 1 Set: 10 Days / 2-5 Set: 15 Days / 6-10 Set: 25 Days / >10 Set: Negotiated
    Delivery Time : 10Days
    • Product Details
    • Company Profile

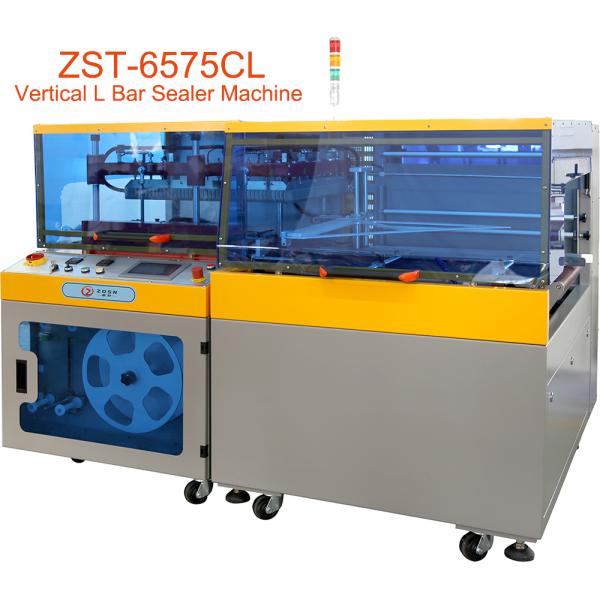

    Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine


    Auto Vertical L Type Sealer Box Wrapping Shrinking Packing Machine


    Basic Information


    Model NOZSL-6575CL + T-5025TypePOF Shrink Film Machine
    Heating ModeStainless Steel HeatingPower3.3 KW + 16 KW
    Max Packing SizeL+H≤700mm W+H≤520mmSealing HeightH≤220mm
    Weight(N/G)820 / 760kgsExternal Gas Source6-8 KG / M2
    Shrink FilmPOF / PEDimension(L*W*H)2160*1690*1380mm
    Horizontal Blade Length650MMLongitudinal Blade Length750MM
    Speed30Mters / MinuteApplicationsBook, Carton, Box, Ladder
    Transport PackageWooden BoxSpecificationVertical L Bar Sealing
    CertificationCETrademarkZOSN
    OriginGuangdong, ChinaHS Code8422303090
    Production Capacity50 Sets / MonthCustomizationLogo / Color/ Size / Voltage / Material / Parts Brand

    Product Features

    1. ZSL-6575CL is a fully automatic unmanned operation "L" type sealing machine which is widely used in mass production packaging line with high efficiency. Automatic film feeding punching device, manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
    2. Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution;
    3. Equipped with imported photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;
    4. Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the waste film automatically rolling;
    5. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers; Different size products can also be packaged combinations to achieve the promotional effect;
    6. Using original Autonics digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature. The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting;
    7. The machine is equipped with organic glass shield with automatic alarm function which greatly improves safety;
    8. The entire machine realizes unmanned operation with the production line connecting;
    9. Film up-down synchronization mechanism specially designed to correct the deviation film;
    10. I can be added easily tear functions according to customer requirements;
    11. Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries' large quantities of shrink wrap.


    Product Description


    ModelZSL-6575CLT-5025
    Power3.3kw16kw
    Power SupplyAC 220V 1PH 50HzAC 380V 3PH 50Hz
    Max. Packing SizeL+H≤700mm W+H≤520mm H≤220mmW400 × H200mm
    Packing Speed8-30 Pcs / min.0~30m / min.
    External Air Source6-8kg / cm2/
    Shrink FilmPOF / PEPOF / PE / PVC
    Machine Size L×W×H1960 × 1590 × 1320mm2000 × 1050 × 1180mm
    G./N. Weight820 / 760kgs420 / 360kgs

    Product Display




    Heating Sealing Blade: Teflon printed sealing blade, without gaps and plastic sticker, Sealing neat and firm.



    Electric Cabinet: Using Mitsubishi PLC and other famous brand electrical appliances, the machine runs smoothly and stably, the program after 16 years of continuous accumulation and update, has been nearly perfect, to ensure packaging speed and effect.



    Thermal cycle visual shrink packaging tunnel keeping constant temperature. Can be set different temperature to suit for different film, wind direction and speed also can be adjusted to




    Packaging And Delivery


    1. Spray anti-rust oil
    2. Fix the machine on the pallet
    3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
    4. Covered with sea export plywood case.

    5. Port Guangzhou or Shenzhen
